LED Video Splicer_Amoonsky-Leading LED Display Control Solution Prov

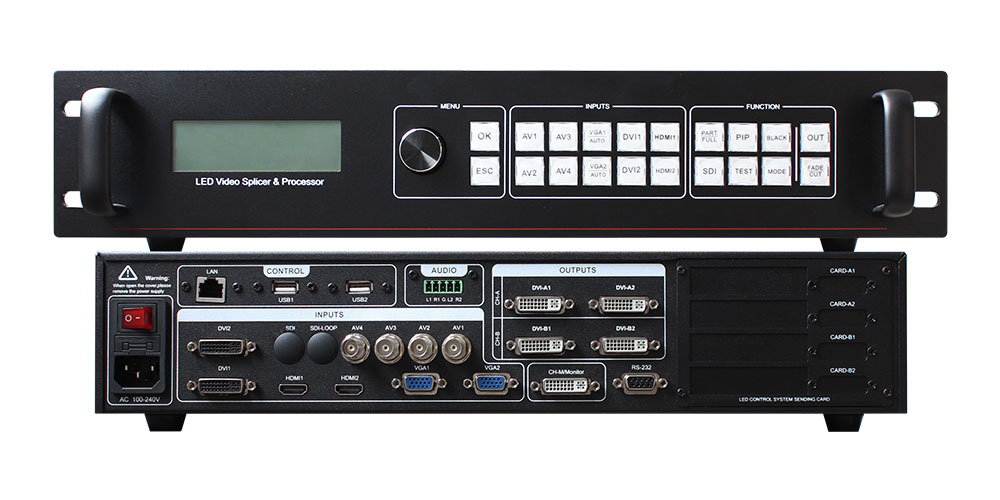

MC158 Series Signal Switching Fade-In And Fade-Out
2-Channels 4 DVI Splicing Output
Support USB Player
5.3 Million Pixel Custom Resolution
6 Channels Input : 1AV、1DVI、2HDMI、1VGA、1USB
Max Output Resolution: 7680x640@60Hz、4608x1152@60Hz、3840x1280@60Hz
Support One Key Black Or Freeze Function
Synchronization Audio Decoding Output
10 Mode Saved And Recall
Support Upper-Computer Control
Support 4 Standard Sending Cards

AMS-MC158

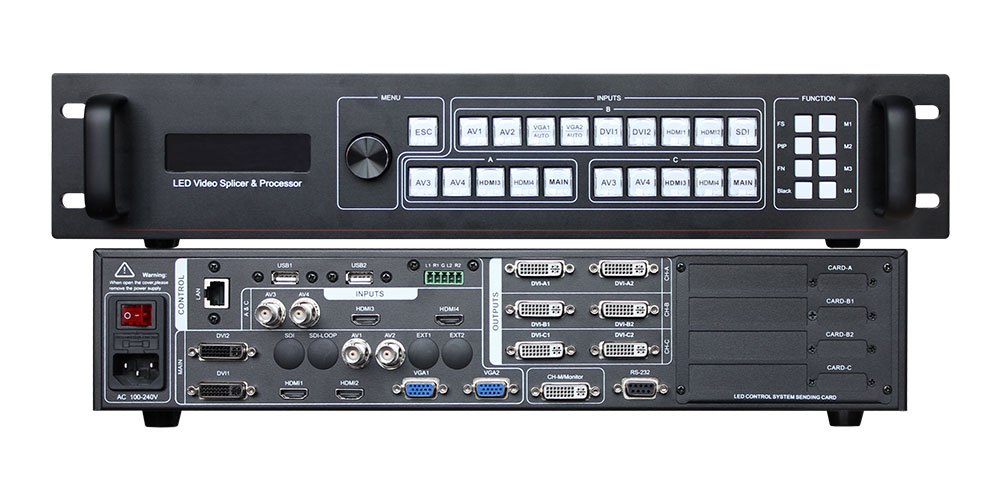

SC359 Series
Seamless Switching Video Wall Controller
13 Channels Digital-Analog Video Input
Each Channel Independent Resolution Output
One Key Black Screen And Freeze
Realize Multi-Processor Cascade Splicing
3 Channels Splicing、1 Channel Monitor
7.95 Million Pixel Custom Resolution
Three View Roamed Across Channels
Mode Save And Recall
Max Output Resolution: 11520x640@60Hz、6912x1152@60Hz、3072x1920@60Hz
Support SDI Input ( Optional )
Support 6 Standard Sending Cards

AMS-SC359 AMS-SC359S

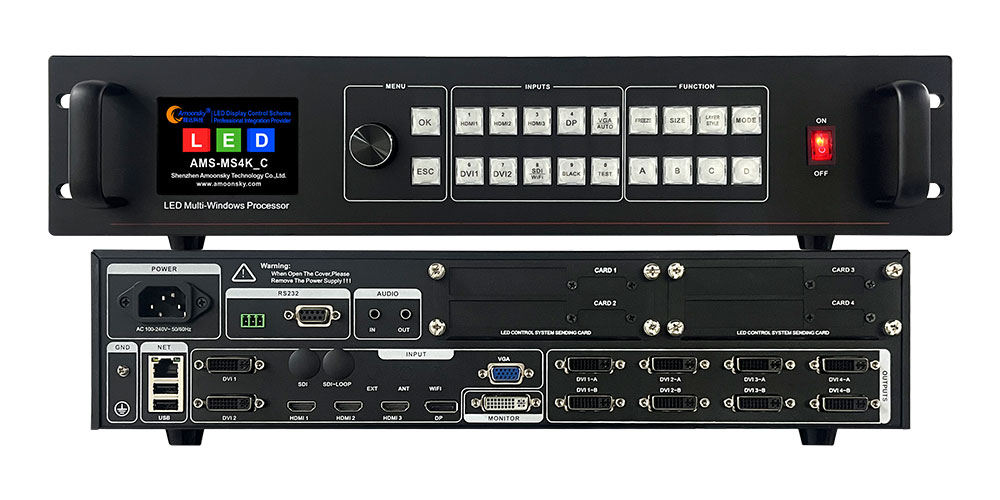

MS4K_C Series
Support 3840*2160@60Hz Input
Support Seamless Switching
Support One Key Black Or Freeze Function
DVI Port Monitoring Total Output
10 Mode Saved And Recall
Image Rotation And Mirror Function
Synchronize Audio Decoding Output
Built-in 11 Testing Patterns
Support SDI Or USB Input (Optional)
Support Upper-Computer Control
Support 8 Sending Cards, Can Install 4 Sending Cards
Largest Splicing Resolution: 15360x640@60Hz , 4608x2304@60Hz , 3840x2160@60Hz , 3072x3072@60Hz , 960x8640@60Hz

AMS-MS4K_C AMS-MS4KS_C

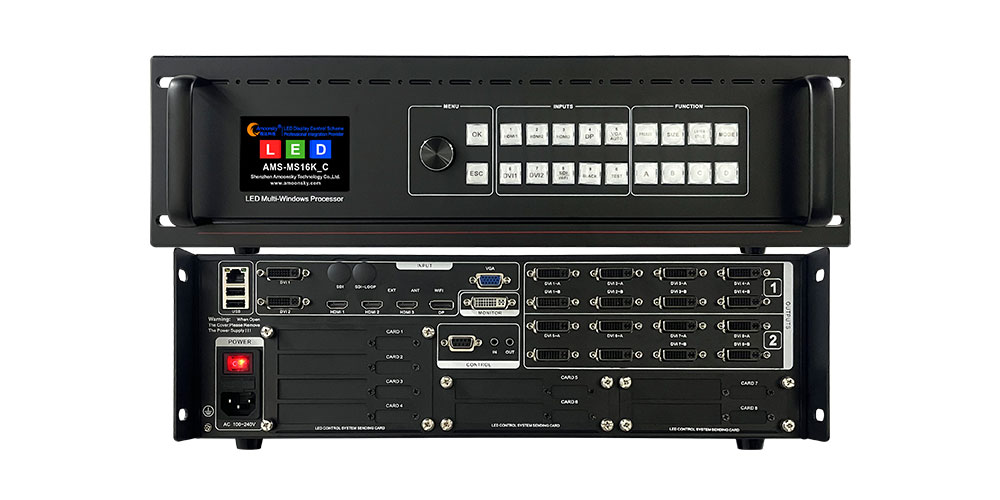

MS16K_C Series
Support 3840*2160@60Hz Input
Support Seamless Switching
Support One Key Black Or Freeze Function
DVI Port Monitoring Total Output
10 Mode Saved And Recall
Image Rotation And Mirror Function
Synchronize Audio Decoding Output
Built-in 11 Testing Patterns
Support SDI Or USB Input (Optional)
Support Upper-Computer Control
Support 16 Sending Cards, Can Install 8 Sending Cards
Largest Splicing Resolution: 30720x640@60Hz , 9216x2304@60Hz , 6144x3072@60Hz , 1920x8640@60Hz

AMS-MS16K_C AMS-MS16KS_C
